陜汽

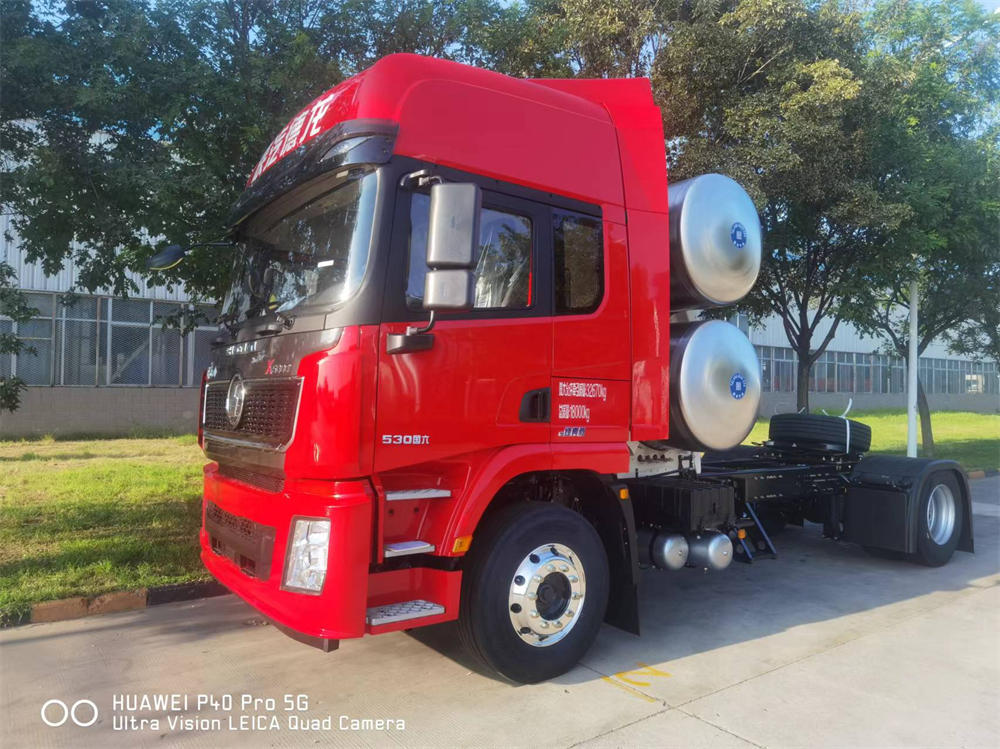

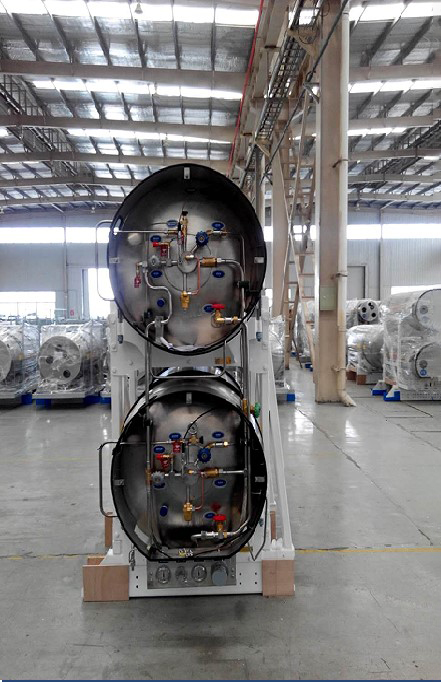

后置雙1350/雙1500
產品規格
充裝質量
工作壓力
靜態蒸發率
奧揚現有氣瓶型譜 | ||||||||
序號 | 氣瓶型號 | 公稱容積(L) | 有效容積(L) | 外直徑 | 瓶體長度 | 氣瓶?jì)糁兀↘g) | 標準靜態蒸發率數值%/d | 充裝重量Kg |
1 | CDPW500-240-1.59 | 240 | 208 | 556 | 1531 | 159 | 2.71 | 76 |
2 | CDPW500-275-1.59 | 275 | 239 | 556 | 1709 | 174 | 2.67 | 88 |
3 | CDPW500-330-1.59 | 330 | 287 | 556 | 1992 | 219 | 2.60 | 105 |
4 | CDPW600-335-1.59 | 335 | 291 | 656 | 1512 | 232 | 2.61 | 107 |
5 | CDPW600-375-1.59 | 375 | 326 | 656 | 1653 | 226-228 | 2.58 | 120 |
6 | CDPW600-450-1.59 | 450 | 392 | 656 | 1920 | 253-254 | 2.52 | 144 |
7 | CDPW600-500-1.59 | 500 | 435 | 656 | 2097 | 266-267 | 2.40 | 160 |
8 | CDPW600-550-1.59 | 550 | 479 | 668 | 2264 | 335 | 2.40 | 176 |
9 | CDPW650-375-1.59 | 375 | 326 | 706 | 1465 | 247 | 2.58 | 120 |
10 | CDPW650-450-1.59 | 450 | 392 | 706 | 1691 | 258 | 2.52 | 144 |
11 | CDPW650-500-1.59 | 500 | 435 | 706 | 1842 | 274 | 2.40 | 160 |
12 | CDPW650-550-1.59 | 550 | 479 | 708 | 1985 | 336 | 2.40 | 176 |
13 | CDPW650-600-1.59 | 600 | 522 | 708 | 2136 | 358 | 2.40 | 192 |
14 | CDPW650-700-1.59 | 700 | 609 | 708 | 2424 | 401 | 2.40 | 224 |
15 | CDPW650-750-1.59 | 750 | 653 | 708 | 2589 | 423 | 2.40 | 240 |
16 | CDPW850-1000-1.59 | 1000 | 870 | 908 | 2124 | 460-465 | 2.40 | 320 |
17 | CDPW850-1000-1.37 | 1000 | 900 | 908 | 2124 | 450-455 | 2.40 | 331 |
18 | CDPW850-1000-1.4 | 1000 | 900 | 908 | 2124 | 450-455 | 2.40 | 331 |
19 | CDPW850-1000-1.45 | 1000 | 890 | 908 | 2124 | 450-455 | 2.40 | 327 |
20 | CDPW950-1350-1.37 | 1350 | 1215 | 1008 | 2299 | 575-580 | 1.80 | 447 |
21 | CDPW1000-1350-1.45 | 1350 | 1201 | 1058 | 2113 | 575-580 | 1.80 | 442 |
22 | CDPW-1050-1500-1.6 | 1500 | 1305 | 1109 | 2159 | 670-675 | 1.80 | 480 |
